Used in the transportation of plastic products or crushed particles, can be used in the crusher feed and discharge, or transport from injection molding machine to the workshop designated location.

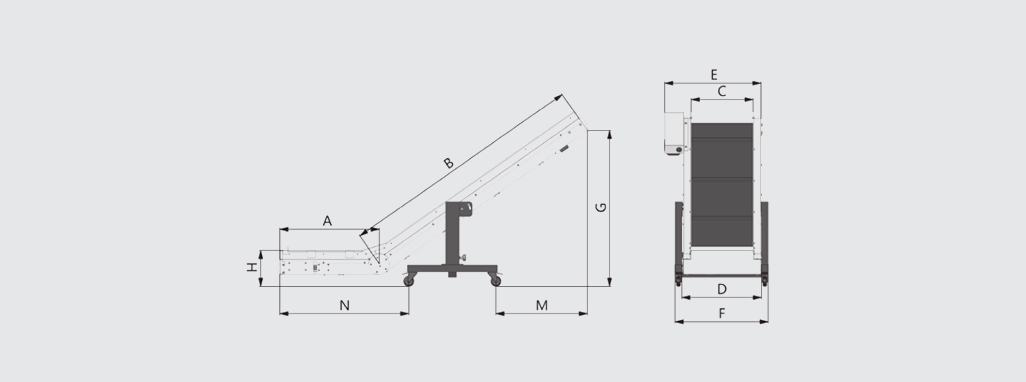

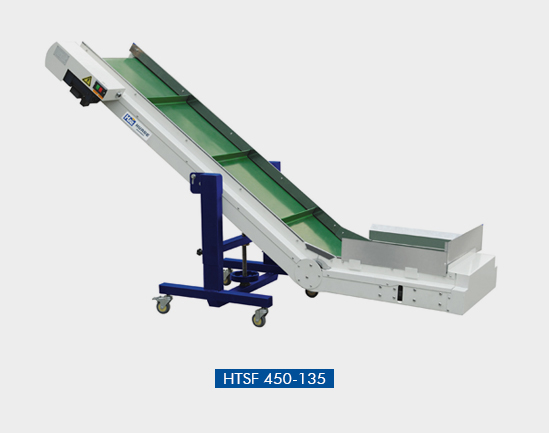

Type	Type	HTSF 250-65	HTSF 350-65	HTSF 450-65	HTSF 250-135	HTSF 350-135	HTSF 450-135
A	mm	700	700	700	700	700	700
B	mm	1300	1300	1300	1800	1800	1800
C	mm	250	350	450	250	350	450
D	mm	368	468	568	368	468	568
E	mm	500	600	700	500	600	700
F	mm	480	580	680	480	580	680
G	mm	925+65	925+65	925+65	1130+135	1130+135	1130+135
H	mm	330+65	330+65	330+65	192+135	192+135	192+135
L	mm	1825	1825	1825	2230	2230	2230
M	mm	495	495	495	650	650	650
N	mm	750	750	750	910	910	910

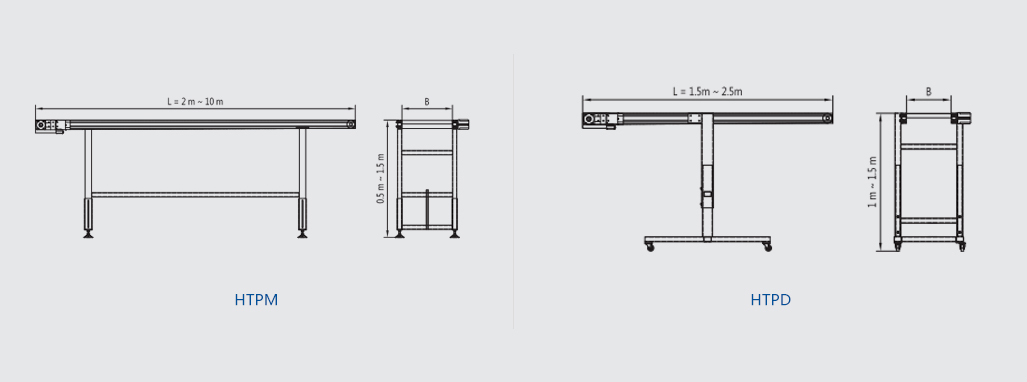

Type	Type	HTPM 250L	HTPM 350L	HTPM 450L	HTPM 600L	HTPM 800L	HTPM 1000L	HTPD 250L	HTPD350L	HTPD450L
B	mm	250	350	450	600	800	1000	250	350	450

Note

The power supply must use the specified voltage.

Have any special needs, please contact us.

Specifications are subject to change without prior notice.

HT - AA - BBB - CCC

HT:HUARE Conveyor Belt

AA:SF=Upward conveyor with platform；PM=parallel transport with double support；PD=平行输送单支撑

BBB:Belt width

CCC:djustable height （HTSF type）; Conveyor length

Integral sheet metal forming, steel is strong and difficult to deformed;

European-style design, reliable, durable and long life;

Moving flexible, height can be adjusted;

Achieved with another planar conveyor belts connected to use;

Easy install, adjust and operate;
